| Lugar de origen: | Shenzhen, China |
|---|---|
| Nombre de la marca: | RAYMO |
| Certificación: | SGS, RoHS2.0, ISO:9001-2015, CE, REACH |
| Número de modelo: | ERA.00.250.CLL |
| Cantidad de orden mínima: | 5 pedazos/pedazos |
| Precio: | negotiable |
| Detalles de empaquetado: | La bolsa de plástico y cartón |
| Tiempo de entrega: | 5-7wds |
| Condiciones de pago: | Western Union, L/C, D/A, D/P, T/T |
| Capacidad de la fuente: | semana 5000Pieces/ |
| Tipo: | ZÓCALO DEL PANEL DE LA ERA | Shell clasifica: | 00S, 0S, 1S, 2S |
|---|---|---|---|
| Contactos: | PIN COAXIAL, 50ohm | Género: | Contacto femenino |
| Aislador: | El PPS, OJEADA está disponible | Graduación del IP: | IP50 |
| Resaltar: | conector del codo del cable,Cable al conector de cable |
||

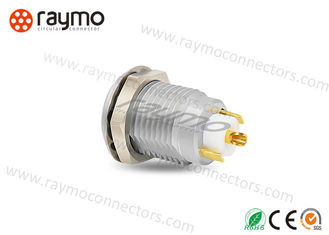

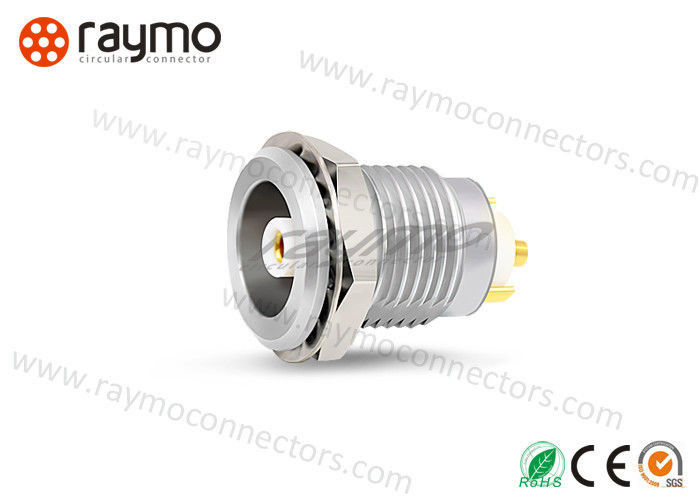

ERA.00.250.CLL RAYMO 00 Series Mini Female Socket 00 Coaxial Femlae Connector
00S 50OHM Coaxial connector
Straight PCB, solder and elbow PCB contacts are available too
| RAYMO PART NO | LEMO PART NO |
| RM-ERA-00S-250-KS | ERA.00.250.CLL |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | |||||
| 00S | 1(coaxial) | |||||
| 0S | 1(coaxial) | 2 | 3 | 4 | ||
| 1S | 1(coaxial) | 2 | 3 | 4 | 5 | 6 |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | 5000 mating cycles |
