Inicio ProductosConector J30JJ30J Series Metal Connector with 1.27mm Contact Spacing and Gold Plating

J30J Series Metal Connector with 1.27mm Contact Spacing and Gold Plating

J30J Series Metal Connector with 1.27mm Contact Spacing and Gold Plating
J30J Series Metal Connector with 1.27mm Contact Spacing and Gold Plating
J30J Series Metal Connector with 1.27mm Contact Spacing and Gold Plating J30J Series Metal Connector with 1.27mm Contact Spacing and Gold Plating
Informacion basica
Nombre de la marca: Raymo
Certificación: CE/RoHs/REACH/ISO9001:2015
Model Number: RM-J30J
Documento: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Precio: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Condiciones de pago: T/T, D/A, D/P, Western Union, Moneygram
Supply Ability: 5000PCS Per Month
Contactar ahora
Material: Metal Tipo de producto: Conector
Calificación actual: 3A contacto: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Distancia de la cuadrícula: 2.54 por 2.54 Director central: Cobre de aleación, recubierto de oro
Resistencia a aislamiento: ≥ 5000 MΩ Terminación del contacto: Rizar
Resaltar:

J30J series metal connector with gold plating

,

1.27mm contact spacing J30J connector

,

J30J series gold plated metal connector

1.27mm Contact Spacing J30J Series Connector for -55～125°C Temperature Range and Customized Wire Length
Product Attributes
Attribute Value
Material Metal
Product Type Connector
Current Rating 3A
Contact 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Grid Distance 2.54×2.54
Center Conductor Copper Alloy, Gold Plating
Insulation Resistance ≥ 5000 MΩ
Contact Termination Crimp
Product Description
The J30J series connector is a high-quality product in the MWDM Glenair Micro-D family, offering exceptional performance and reliability. This connector features a grid distance of 2.54×2.54, making it compatible with various applications that require precise connections.

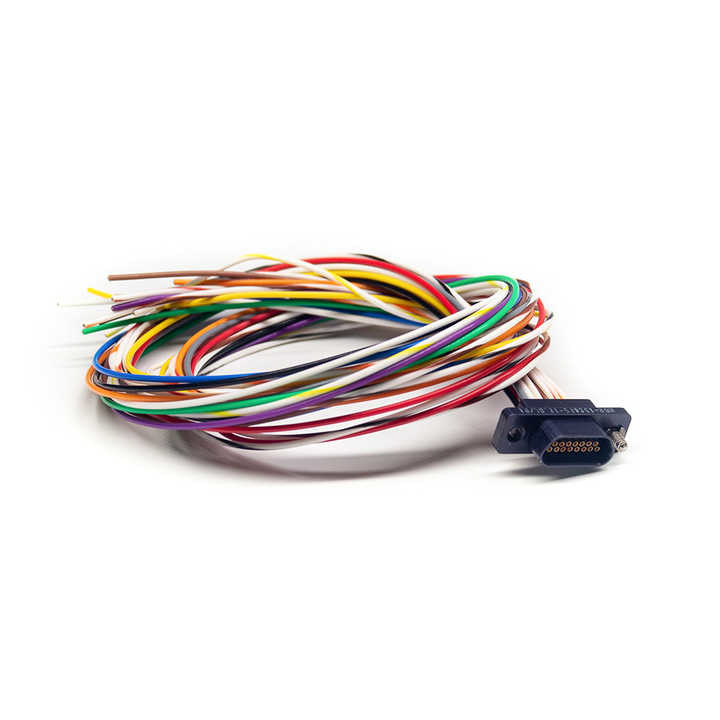

One of the key advantages of the J30J series connector is its customized wire length, allowing for flexibility in installation and usage. Whether you need a specific wire length for your project or require custom configurations, this connector can meet your requirements effectively.
Constructed from high-quality metal material, the J30J series connector offers durability and longevity in various operating conditions. The metal construction provides excellent protection against environmental factors, ensuring stable performance over time.
Key Features
  • Insulation Resistance: ≥ 5000 MΩ
  • Plating: Gold Plating
  • Grid Distance: 2.54×2.54
  • Temperature Range: -55～+125°C

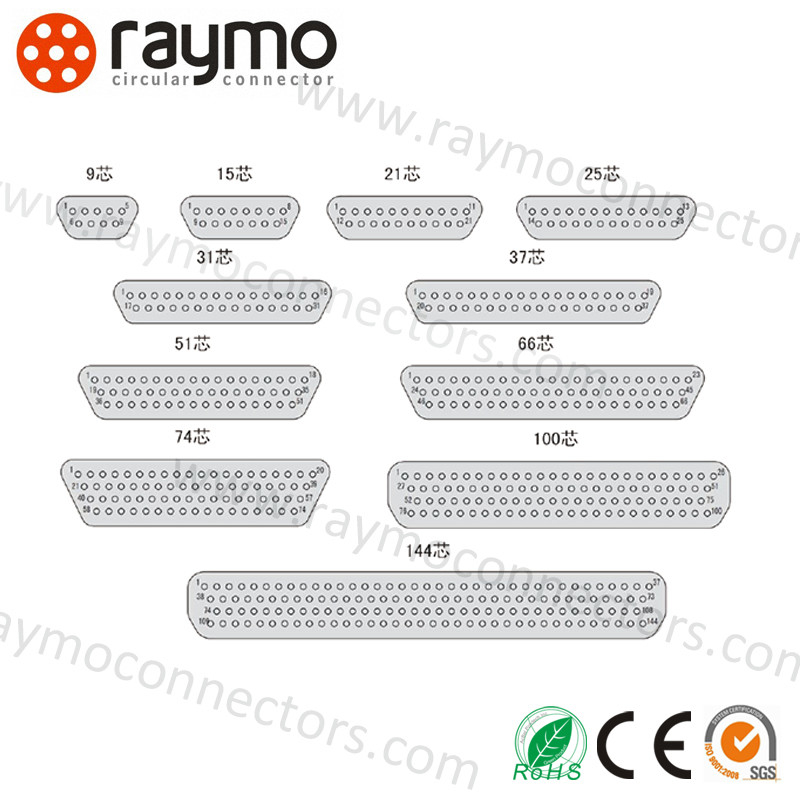

  • Contact Options: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Technical Parameters
Parameter Value
Contact Gender Male Plug/Female Receptacle
DWV 800V
Product Type Connector
Center Conductor Copper Alloy, Gold Plating
Current Rating 3A
Temperature Range -55～+125°C
Applications
The J30J series connector is a versatile and reliable product suitable for a wide range of applications including:
  • Military and aerospace applications (Micro-D MIL-Spec Connector)
  • Industrial equipment and telecommunications systems
  • Data communication systems and electronic devices
  • PCB and cable connectivity solutions
With CE/RoHs/REACH/ISO9001:2015 certifications, the J30J connector meets international standards for quality and reliability.
Support and Services
Our dedicated technical support team provides comprehensive assistance including:
  • Product installation and troubleshooting guidance
  • Maintenance support and on-site assistance
  • Customization services and training programs
