Name: J30J Series 9-Pin Connector 250V for Electronic Equipment
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: J30J-21TJS
Price: 10.00 USD
Availability: InStock

J30J Series 9-Pin Connector 250V for Electronic Equipment

Informacion basica

Nombre de la marca:	Raymo
Certificación:	CE/RoHs/REACH/ISO9001:2015
Número de modelo:	J30J-21TJS
Documento:	J30J Miniature Rectangular ...es.pdf

Minimum Order Quantity:	1 Piece
Precio:	5-15 USD
Packaging Details:	CTN
Delivery Time:	3-4 Weeks
Condiciones de pago:	T/T, D/A, D/P, Western Union, Moneygram
Supply Ability:	5000PCS Per Month

Contactar ahora

Pin de contacto:

9 pines

Longitud del cable:

Según

Pernos disponibles:

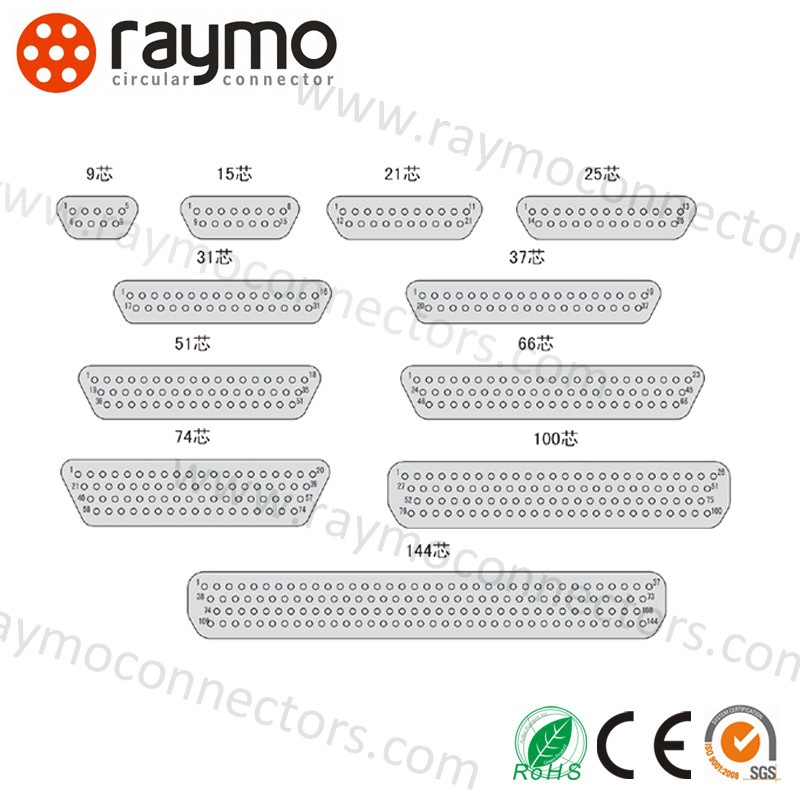

9, 15, 21, 25, 31, 37, 51, 66, 74, 100

Tipo:

Conector

Director central:

Cobre de aleación, recubierto de oro

Rango de temperatura:

-55 ̊+125 °C

Calificación de voltaje:

250V

Distancia de la cuadrícula:

2.54 por 2.54

Resaltar:

J30J series 9-pin connector

250V electronic equipment connector

J30J series 9-pin 250V connector

J30J-21TJS 250V Voltage Rating The Perfect Combination for J30J Series Connector in Electronic Equipment

Product Specifications

Attribute	Value
Contact Pin	9 Pins
Cable Length	As Require
Available Pins	9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Type	Connector
Center Conductor	Copper Alloy, Gold Plating
Temperature Range	-55～+125 ℃
Voltage Rating	250V
Grid Distance	2.54×2.54

Product Overview

The J30J series connector is a highly reliable and versatile product designed for various industrial applications. With customizable cable length and durable construction, it provides secure connections between devices and systems.

Key Features

Mating Cycle: 500 Times for long-lasting durability
Application: Electronic Equipment
Precise Grid Distance: 2.54*2.54 for accurate alignment
Contact Pin: 9 Pins configuration (other options available)
Withstanding Voltage: 500VAC for safety and reliability

Technical Parameters

Parameter	Value
Voltage Rating	250V
Application	Electronic Equipment
Mating Cable	AFR-250, White Wire 0.1~0.15mm²
Wire Length	50cm, 500mm
Withstanding Voltage	500VAC
Temperature Range	-55～+125 ℃
Mating Cycle	500 Times
Leak Rate	≤1.01X10^-3 Pa.cm³/s

Applications

The J30J series connector is ideal for:

MWDM Glenair Micro-D connectors in space-constrained applications
MDM series connector applications requiring durable performance
Various industrial environments requiring CE, RoHS, REACH, and ISO9001:2015 certified components

Support and Services

Our comprehensive support includes:

Dedicated technical assistance for product inquiries and troubleshooting
Maintenance services and product updates
Warranty support for long-term reliability
